Post by Shanks » Sun Apr 03, 2011 10:44 am

BUT on the flip side i do have what your talking about and ill see if it works

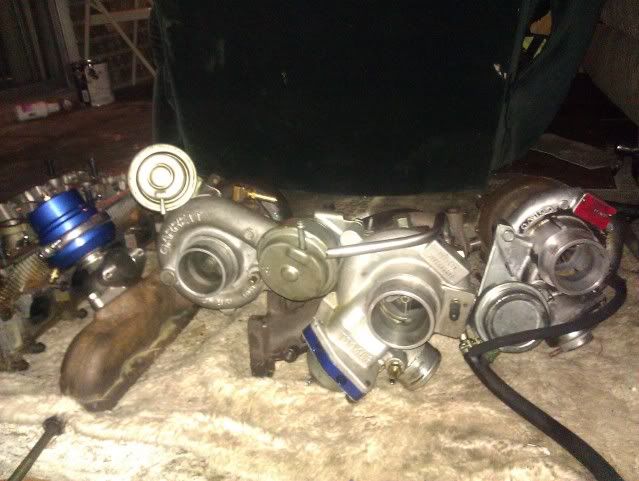

From left to right
2.4 DOHC Garrett ar 42
2.0 DOHC Srt4 tdo4 16g
2.0 SOHC swap DOHC tdo4 15g Valvo (w/ t3 flange adapter)

I call them the three Boostketeers :lol:

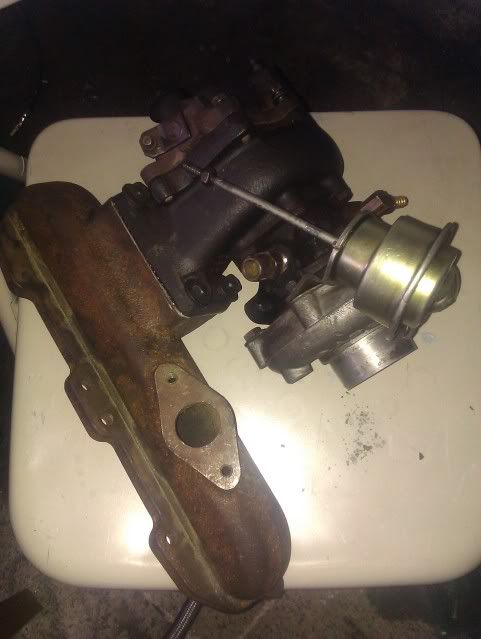

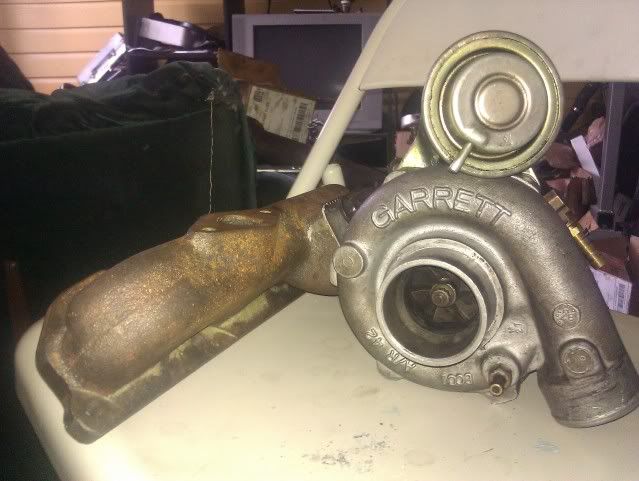

this is ya 420a eclipse turbo manifold

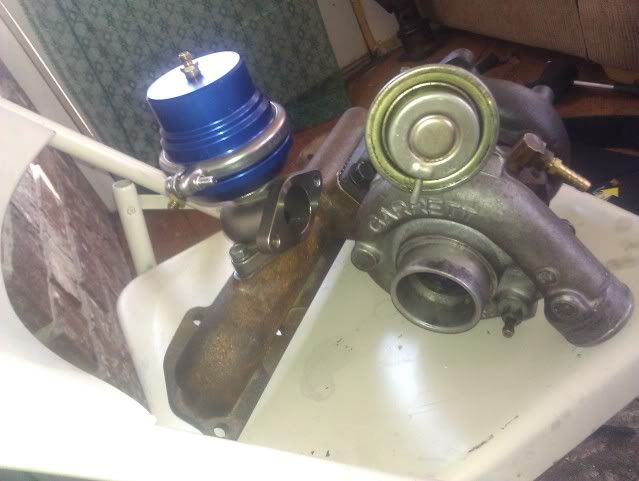

the issue is getting around the manifold waste gate dump, its right on top of the compressor housing. only this is using a block off plate and using a internal wastegate. the clearence is about 11inchs from the back of the head to the firewall. this make close to 10 ima see if it first when i install it.

Shanks
1GN Registrant
Posts: 32
Joined: Wed Sep 29, 2010 12:20 am
Location: United States

Post by Shanks » Sun Apr 03, 2011 10:53 am

*Note if you want a srt type setup you can do what ima do to my sohc,

*420a eclipse turbo mani 130 from ebay
(http://cgi.ebay.com/ebaymotors/95-99-DS ... 998wt_1036)

*junyards who have the volvo 850 turbocharger - td04hl 15g (It can be found on Volvo's of the 850/V70/S70 series in the turbo charged variety. It is also also found on Subies and Saabs)
(Comes with internal wastegate)
* Ebay has a valvo to t3 flange adapter (http://cgi.ebay.com/ebaymotors/ws/eBayI ... 2255wt_734)
*junkyard 2.0 or 2.4 420a dohc head w/ 2.0 cams
*external wastegate blockoff plate off ebay
(http://cgi.ebay.com/ebaymotors/ws/eBayI ... 3227wt_905)
