Crower Cams - DOHC Issue // Lot of pics :(

This is the place to ask questions about your engine components like cams, valves, pistons? just anything that is generally "engine" specific.
Post Reply
Nono
1GN Registrant
Posts: 63
Joined: Mon Dec 03, 2007 7:39 pm
Location: San Juan, PR

Crower Cams - DOHC Issue // Lot of pics :(

Post by Nono » Wed Feb 16, 2011 3:26 pm

Heres the copy/paste from the other org I posted.

______________________________________________________________________________________

I was hoping not to have this experience mentioned on this post:

http://forums.neons.org/viewtopic.php?f ... 4#p2858534


Unfortunatelly, yesterday removed valve cover with the intention to replace valve cover gasket due to tiny oil leak to the sprockets side, this is what I found! Im speechless. Only 5k miles on them... Unbelievable!!

I receive these cams about Jan/2010. Engine ensambled like 3-4 months later. Couldnt run the car until Jul/2010 due to a crank issue, nothing a machine shop couldnt repair. Prev owner drilled some holes at the crank timing gear to make it balanced. Machine shop just filled them. (I got this engine from a race car using Electromotive System w/ an external cam trigger wheel). Im using the Neon as DD for now cause I need MS and a new tranny. Got the tranny like 1 month ago, not yet installed.

Well... pics :(

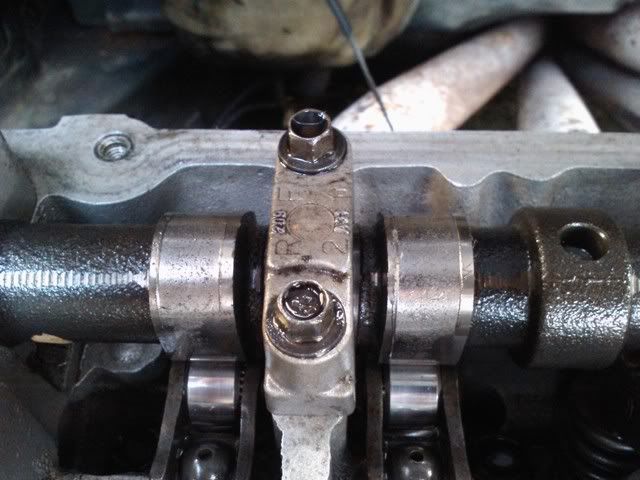

Crower Stage 4 - exhaust cam:



Got few mins earlier today to take out the cam, and take some ads pics. Just to mention, parts prior to install were in perfect conditions (lifters, valves, retainers, caps & rockers). Oil pump NIB. Head is used, but from a running car. This engine got ensambled by a certified tech (my mech). No error on installation. Problem = something mechanical. Thats what I want to know or determine what was the cause of this failure.

As I prev said and copy/paste the link about a tread I posted around 1.5 yrs ago. Since then, they took like 5 months to receive them from MP. Currently 5k miles on them. I was told about this issue prior to purchase these cams but i thought it was bad luck.

Theres 2 other guys around here who got the same problem as me with a crower cam , exhaust cam specifically. Theres other 2 cases where exhaust cam got broken in 2 pieces right in the middle. All prev 4 cases got no damages on intake cam at all. Why? Thats the big question. Im the fifth one with problems on an exhaust Crower Cam.

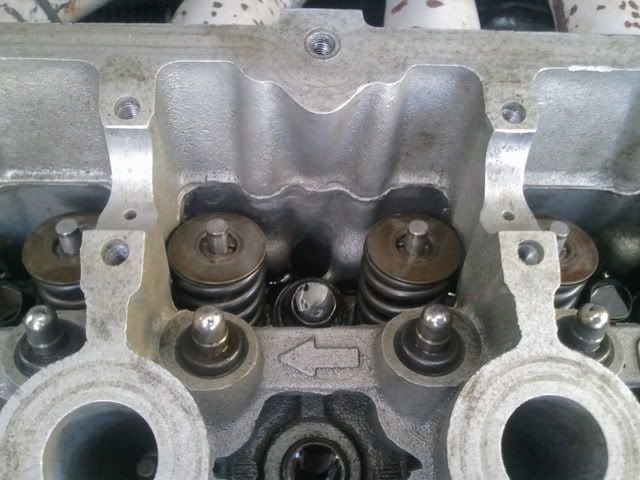

Heres the pics. They are in specific order as cylinders (1, 2, 3 and 4). To give you kinda orientation as they are posted:



This is how the intake cam looks like:




Hope this gives you all "more info" to post your appreciated comments. Thanks!
-'98 SOHC Neon N/A
- Best 60' 2.04s, Best mph 98.87, Best e/t 13.99s - but
RIP !!!

- Finally.. in the end... Nono has joined the dark side. New project: 98 D♂hç ∩ε♂∩ ∩/a :twisted: :twisted: :twisted:

BaLLisTiK
1GN Registrant
Posts: 661
Joined: Tue Sep 21, 2010 10:31 pm
Location: New Port Richey, FL

Post by BaLLisTiK » Sun Feb 20, 2011 11:07 am

i am speechless too.
boostless_98 wrote:I want to hear wat everyone has to say on the idea of right hand drive neon conversion. I know it can be gotten from australia.
Ianguilly wrote:Just drive from the passenger side.

User avatar
1genRTturbo
1GN Registrant
Posts: 468
Joined: Sun Feb 28, 2010 5:20 pm
Location: Tooele, ut

Post by 1genRTturbo » Sun Feb 20, 2011 5:10 pm

wow im a bit taken back. ive only seen this once, and it was from bad rockers. but it wasn't on a neon. damn that suxz man.
Last edited by 1genRTturbo on Tue Feb 22, 2011 6:22 pm, edited 1 time in total.
It's not the fall that hurts, it's the sudden stop at the bottom!

User avatar
Ianguilly
1GN Registrant
Posts: 1321
Joined: Thu Oct 22, 2009 9:28 am
Location: Cincinnati, OH

Post by Ianguilly » Sun Feb 20, 2011 9:34 pm

Wow, i've never seen cams that bad, hope you figure out what it is, really sucks.
-Neon #3 1999 Dodge Neon R/T, Flame Red, DOHC MTX, Goodies, "Christine X2"

-Neon #6 95 NYG sport coupe SOHC MTX, 1 0f only 527
jamieely wrote: There are 2 kinds of people here, those with coupes, and then the other guys. If srt4s were coupes I would have one.

User avatar
eddie389
1GN Registrant
Posts: 30
Joined: Sun Dec 27, 2009 4:08 am
Location: Germany/near Munich

Post by eddie389 » Mon Feb 21, 2011 2:23 am

The camshaft profile has not been surface hardened.
thats all, claim that, and you'll get your money back

Nono
1GN Registrant
Posts: 63
Joined: Mon Dec 03, 2007 7:39 pm
Location: San Juan, PR

Post by Nono » Fri Feb 25, 2011 5:07 pm

eddie389 wrote:The camshaft profile has not been surface hardened.
thats all, claim that, and you'll get your money back

I called Crower and they will replace me the both cams. They have identified few cams which have issues during hardeness process. Sent them today.
-'98 SOHC Neon N/A
- Best 60' 2.04s, Best mph 98.87, Best e/t 13.99s - but
RIP !!!

- Finally.. in the end... Nono has joined the dark side. New project: 98 D♂hç ∩ε♂∩ ∩/a :twisted: :twisted: :twisted:

BaLLisTiK
1GN Registrant
Posts: 661
Joined: Tue Sep 21, 2010 10:31 pm
Location: New Port Richey, FL

Post by BaLLisTiK » Fri Feb 25, 2011 7:50 pm

That's awesome, but did you damage anything else? Will they replace it?
Hope you get it fixed soon. :)
boostless_98 wrote:I want to hear wat everyone has to say on the idea of right hand drive neon conversion. I know it can be gotten from australia.
Ianguilly wrote:Just drive from the passenger side.

2drSRT4
1GN Registrant
Posts: 853
Joined: Mon Feb 28, 2011 7:12 pm
Location: El Paso, TX

Post by 2drSRT4 » Tue Mar 01, 2011 12:16 am

Is there a bearing on that front cam cap? Why?

User avatar
tradethedead
1GN n00b
Posts: 9
Joined: Sun Mar 13, 2011 4:07 pm
Location: Utah

Post by tradethedead » Sun Mar 13, 2011 4:24 pm

wow.

R/TErnie
1GN n00b
Posts: 14
Joined: Sat May 21, 2011 1:26 pm
Location: Bellingham WA

Post by R/TErnie » Sat May 21, 2011 4:23 pm

Interesting... I hope MPx has sent back any stock that had this issue.
1998 Dodge Neon R/T
2006 Evo 9
2011 Jeep Compass
